The TR413 Tire Valve Stem is one of the most widely used snap-in tubeless tire valves for passenger cars, SUVs, light trucks, and trailers. Manufactured from high-quality EPDM rubber with a precision brass stem and high-performance valve core, it provides a secure airtight seal and reliable inflation performance.
Designed for standard 11.3 mm (0.453") rim holes, the TR413 valve stem offers quick installation, excellent air retention, and long service life. It is suitable for tire replacement, wheel maintenance, automotive repair shops, and OEM applications. The TR413 design is an industry-standard snap-in valve commonly used on passenger vehicle tubeless wheels and is typically rated for cold inflation pressures up to approximately 65 PSI.
Excellent Airtight SealingExcellent airtight sealing to minimize pressure loss.
SuitableSuitable for steel and aluminum wheels with a 0.453" (11.5 mm) valve hole..
CustomizationAvailable in black rubber, chrome sleeve, and customized versions.
Technical Product Data
Model
Tr413
Type
Snap-In Tubeless Tire Valve
Material
Rubber + Brass Stem
Effective Length
43mm ( 1.69" )
Rim Hole Diameter
11.5 mm ( 0.453" )
Maxium Cold Inflation Pressure
65 PSI ( 4.5 Bar )
Application
Passenger Cars, SUVs, Light Trucks, Small Trailers
Safe and stable, high driving reliability
Compared with ordinary rubber valve stems, the TR413 offers reliable sealing performance, excellent resistance to heat and ozone, and a long service life. Its standardized dimensions make it compatible with most passenger vehicle wheels, helping reduce maintenance costs while improving tire safety.
Compatible with standard Schrader valve cores and valve caps.
100% air leak tested before shipment.
Snap-in design enables fast and secure installation without special hardware.
Universal adaptation, extremely compatible
Standard 11.5mm (0.453 inch) wheel hub hole
Original steel rims and ordinary alloy wheels are universal, and 95% of household car vacuum tires and wheels on the market can be directly replaced. They are standard parts for automotive repair.
Suitable for wheel hub thickness of 1.8-4mm
Full coverage of mainstream wheels for household cars; The maximum pressure capacity is 65 PSI (4.5 bar), fully meeting the standard tire pressure requirements for sedans/SUVs, and suitable for high-speed driving up to 210 km/h.
Effective length 31.8mm (1.25 inches)
Moderate height, easy docking of inflation gun and tire pressure gauge; Compared to the shorter TR412, the deep wheel hub inflates without jamming the gun; TR414 is less prone to scratching road teeth and breaking gravel than long TR414.
TR413 is a universal valve standard in the passenger car vacuum tire industry, suitable for the vast majority of household sedans SUV、 Light trucks have multiple outstanding advantages compared to ordinary inferior rubber and metal nozzles:
The TR413 tire valve is suitable for
Passenger vehicle tire replacement
Rubber valves degrade after 3 years with cracks. Skipping valve replacement leads to slow leaks and breakage at high speeds.
Tire service centers
New TR413 Tire valves fitted with every tire change to stop leaks and high-speed valve damage from aged rubber stems.
Automotive repair workshops
Every tire change equipped with durable TR413 valve stems. Replace tires and valves at once to solve air leakage problems and ensure driving safety.
Wheel manufacturers
The gray coating offers a clean, professional finish after installation.
Tire distributors
The stick-on design helps achieve dynamic balance without damaging the wheel edge.
Fleet maintenance
Surface processing, tape selection, labeling and packaging can be customized according to customer requirements.
Suitable for Vehicle Service and Aftermarket Supply
Whether you are a tire distributor, wheel manufacturer, or automotive service provider, our TR413 Tire Valve Stem delivers dependable quality and consistent performance for every installation.
AutomobilesCarsTrucksSUVsMotorcyclesTire Repair WorkshopsAuto Service CentersWheel Balancing ApplicationsAutomotive Aftermarket Distribution
Standard Box Packing with Custom Branding Support
100Strips / Box
Regular packing unit for wholesale, workshop and distributor replenishment.
OEMLabel & Carton
Custom labels, carton marks and brand packaging can be arranged for market-specific orders.
ODMSpecification Support
Tape, slitting, surface treatment and packaging can be adjusted according to customer needs.

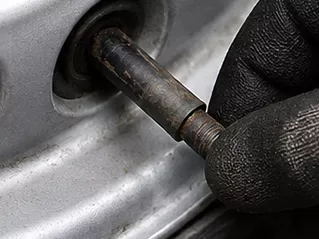

How to replace the tire valve
01Dismantle the old tire valve
After peeling off the tire, push out the aged and damaged old tire valve from the inside of the wheel hub, and clean the rust and burrs in the wheel hub holes.
02Install a new tire valve
Apply water-based lubricant to the root of the new tire valve, insert it from the outside of the wheel hub, and use a pulling tool to tighten and fix it in place with the wheel hub.
03Leak detection completed
Inflate to standard tire pressure, apply soapy water to the root of the tire valve and check for no bubbles or leaks. Assemble the tire and perform dynamic balancing.
Tip: When replacing the valve, it is necessary to perform dynamic balancing.
Frequently Asked Questions
What wheel hub is TR413 tire valve suitable for?
TR413 is a standard short snap on rubber valve, suitable for passenger car steel wheels and ordinary aluminum alloy wheels, mostly used for small cars, compact car vacuum tires, not suitable for trucks, heavy vehicles, and TPMS sensing wheels.
What is the difference between TR413 and TR414 valves?
TR413 has a shorter length and overall height; The TR414 extended version is selected for models with thicker wheel rims and deeper wheel rims. The installation hole sizes of the two are the same and interchangeable.
What is the diameter of the TR413 valve installation hole?
Suitable for standard wheel rim holes of 0.453 inches (11.5mm), which are commonly used for most household sedan wheel rims on the market.
Can TR413 be paired with tire pressure sensor TPMS?
Ordinary TR413 pure rubber air nozzle has no sensor installation position and cannot be paired with built-in TPMS; If tire pressure monitoring is required, a dedicated TPMS metal valve should be selected.
What should I pay attention to when installing TR413?
Only soap water water-based lubrication is allowed, and butter and engine oil are prohibited; After installation, the base must be tightened to fit the wheel hub, and a soap water leak test must be conducted to prevent slow air leakage.
How long is the service life of TR413?
After 2-3 years of normal outdoor use, the rubber will naturally age and crack. It is recommended to replace the valve synchronously with each tire change.
Can TR413 be used for motorcycle wheels?
Not recommended, motorcycle wheel hub thickness is narrow and vibration is high. It is recommended to use a dedicated motorcycle short air nozzle. TR413 is heavy and prone to imbalance.
